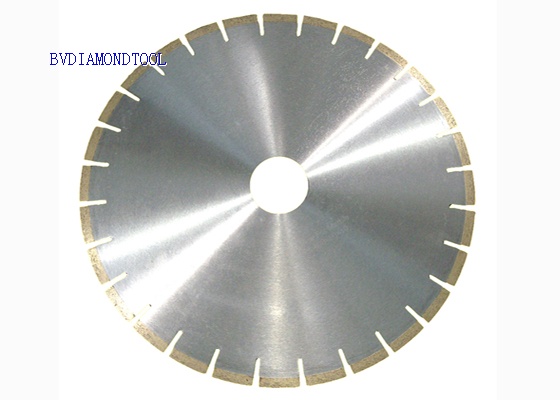

Product name : U slot diamond blade
Item : BVSB-007
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
 Diamond Saw Blades for Slab Edge Cutting of Granite, Sandstone, Marble , Kinds of Hard Stones with quartz, Suitable for Bridge Cutting Machine and Manual Handling Cutting Machine.





Features :

High  Frequency  Welded, Slant U Gullet, Wet Use .



Normal Flat Segments, Length 40mm, height 10-20mm.



Easy and smooth cutting for Hard, Medium Hard, Soft Granite without chips or with very less Chips, Long life and stable performance

Specification just for your reference ,any size would be order by our customers .



Outer Diameter  Hole Demension of teeth Number of teeth
Inch mm mm  Segment Length(mm)  Segment Height(mm)
10" 250mm 25/50 40 10/12/5mm 18
12" 300mm 25/50 40 10/12/5mm 21
14" 350mm 25/50 40 10/12/5mm 24
16" 400mm 25/50 40 10/12/5mm 28
18" 450mm 25/50 40 10/12/5mm 32
20" 500mm 25/50 40 10/12/5mm 36
24" 600mm 25/50 40 10/12/5mm 42
26" 650mm 25/50 40 10/12/5mm 46
28" 700mm 25/50 40 10/12/5mm 50
30" 750mm 25/50 40 10/12/5mm 54
32" 800mm 25/50 24 10/12/5mm 57

We have developed a wide range of diamond saw blades . Our saw blade is available at reasonable rates and is offered in customized specifications. Our saw is widely used for the following materials:

  • Natural Stone like marble, granite, sandstone of different origin .
  • Construction use ,  concrete  ,asphalt
  • √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM
